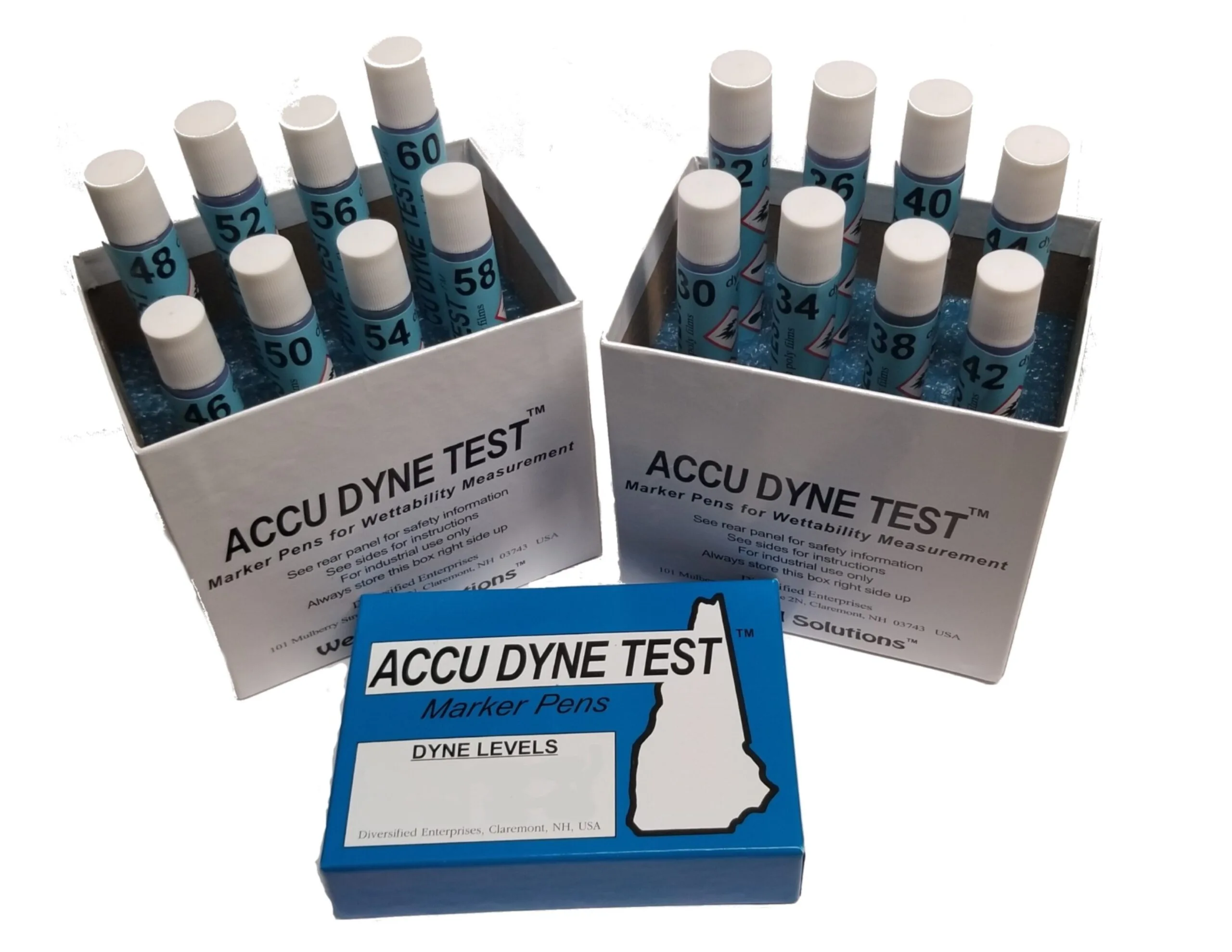

Accu Dyne Full Set 30–72 Dynes/cm Surface Energy Test Marker Kit

Professional Surface Energy Test Marker Kit (30–72 dynes/cm)

The Accu Dyne Full Set 30–72 is a complete professional kit of surface energy test marker pens designed for precise dyne level measurement of films, plastics, foils, coated substrates, and treated materials.

This full-range kit allows accurate verification of surface tension from 30 to 72 dynes/cm, making it ideal for quality control in printing, coating, laminating, extrusion, and converting operations.

What Is Included

• Complete set covering 30–72 dynes/cm

• 16 calibrated dyne levels

• Spring-loaded valve tip applicator

• Reagent-grade testing fluids

• Protective storage case

How It Works

Each marker contains certified dyne testing fluid stored separately from the applicator tip.

When pressed firmly against the substrate:

1. Fresh fluid is dispensed.

2. The tip self-cleans to prevent contamination.

3. The fluid spreads or beads depending on surface energy.

Interpretation:

• If the fluid forms a continuous film for 2+ seconds → Surface energy is at least that dyne level.

• If it beads immediately → Surface energy is below that dyne level.

Key Features

✔ Full 30–72 dynes/cm range
✔ Ideal for corona-treated films
✔ Suitable for polyethylene (PE), polypropylene (PP), PET, PVC, BOPP, foil, coated board
✔ Spring-valve system prevents cross-contamination
✔ Fast in-line quality control testing
✔ Reliable for lab and field use
✔ Professional-grade accuracy

Applications

• Flexographic printing

• Gravure printing

• Laminating lines

• Adhesive bonding verification

• Ink adhesion troubleshooting

• Surface treatment validation (corona / plasma / flame)

Technical Specifications

Why Choose the Full 30–72 Set?

The 30–72 range allows:

• Testing untreated polyolefins (low dyne levels)

• Measuring properly corona-treated films

• Verifying high-energy coated substrates

• Troubleshooting adhesion failures

This makes it the most versatile kit for converters and manufacturers working with multiple substrate types.

Quality & Traceability

Each set is shipped with a clearly labeled manufacturing lot number to ensure full traceability and quality control documentation.
