Tape Test: An Essential Method for Adhesion Evaluation

The tape test is a quick and qualitative method used to verify the adhesion of inks, coatings, or films to a substrate. This technique is widely implemented to assess whether surface treatments (such as corona or plasma) have been sufficiently applied, or if ink or varnish formulations are properly adhering to the surface.

3M 610 Tape Characteristics

The industry standard 3M 610 tape features:

• High initial adhesion, making it ideal for “pulling away” poorly adhered ink or coating layers
• Transparent polyester backing that clearly reveals any removed residues
• Uniform and stable pressure-sensitive acrylic adhesive

Standard Test Procedure

The typical testing process involves four simple steps:

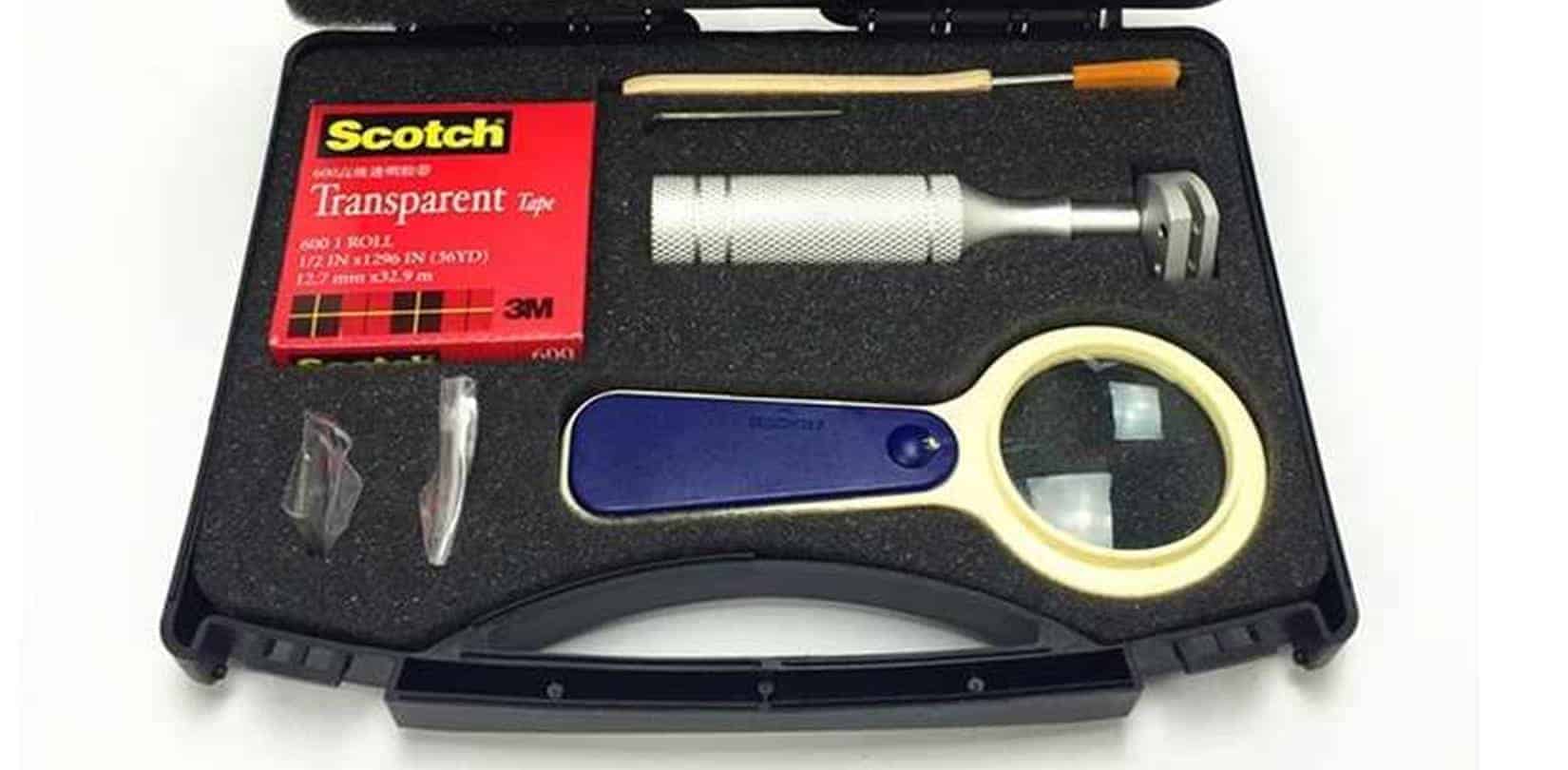

1. Creating a crosshatch pattern (usually using a cutter or ASTM D3359 tool)
2. Firmly applying the 3M 610 tape over the test area
3. Quickly removing the tape at a 90° or 180° angle
4. Visually evaluating how much ink, varnish, or protective coating has detached

Regulatory Standards

Several internationally recognized standards govern this testing procedure:

• ASTM D3359
• ISO 2409
• EN 13523-6

These standards are commonly used in quality control laboratories to evaluate adhesion in coating systems.

Industry Prevalence

The tape test is extremely common in flexographic printing, UV offset, plastic film coatings, and label manufacturing. Its low cost and ease of application have established it as an informal yet highly reliable standard, particularly valuable when sophisticated equipment is unavailable.Retry
